Cast Iron Moulded Ogee Gutter External Angle - 90 Degree x 125mm Primed

In stock
Code
G5410
More Information
Code G5410
EAN Code 0691208227704
Angle 90 Degree
Brand Hargreaves Premier
Colour Grey Primer
Dimension 208mm (L) x 205mm (W) x 100mm (D)
Length 1829mm
Material Cast Iron
Life Expected 100 Years +
Specification BS460
Weight (kg) 2.500000
Size 125mm
Profile Moulded Ogee
Style External
£60.49 £50.41
You need to spend another £250.00 to qualify for 2.5% discount.
All Cast Iron orders under £750 incur a one-off manufacturers' delivery charge of £35 + VAT. Orders over £750 are delivered free of charge to mainland UK.

90 Degree Gutter Angles are used to turn the gutter around the corner of a building.

As the ogee system is not symmetrical, internal and external corners are different fittings.

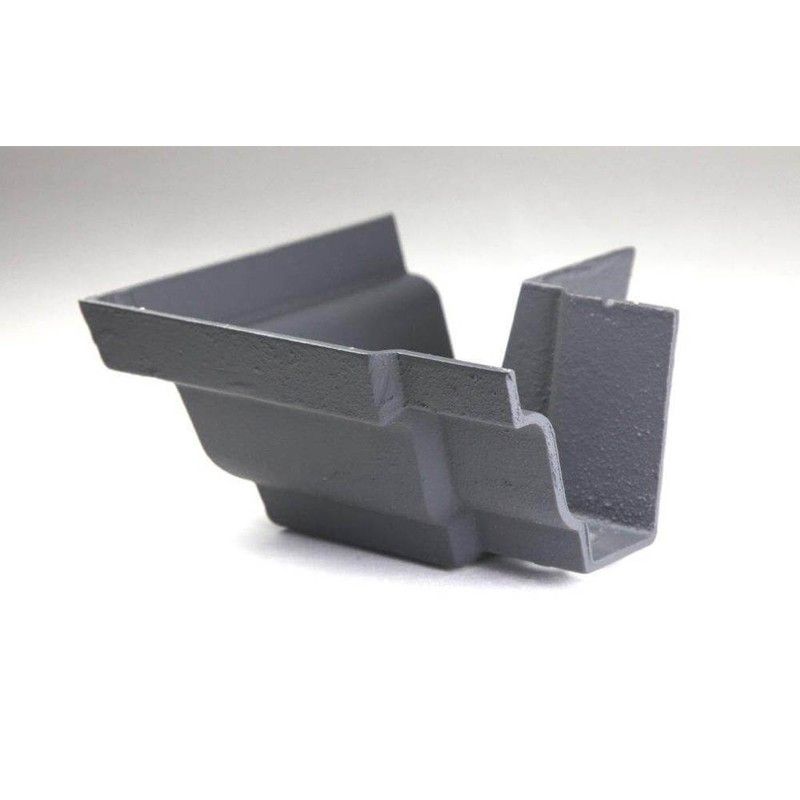

The product image clarifies the difference but essentially if you are stood in front of an external corner, the corner goes away from you out of sight. External corners are usually used on all 90 changes of direction except at the foot of a valley, where you would use an internal corner.

You should always support a gutter angle by positioning a fascia bracket within 150mm on both sides of the angle. This will prevent the fitting from sagging when it is weighed down by water or snow.
