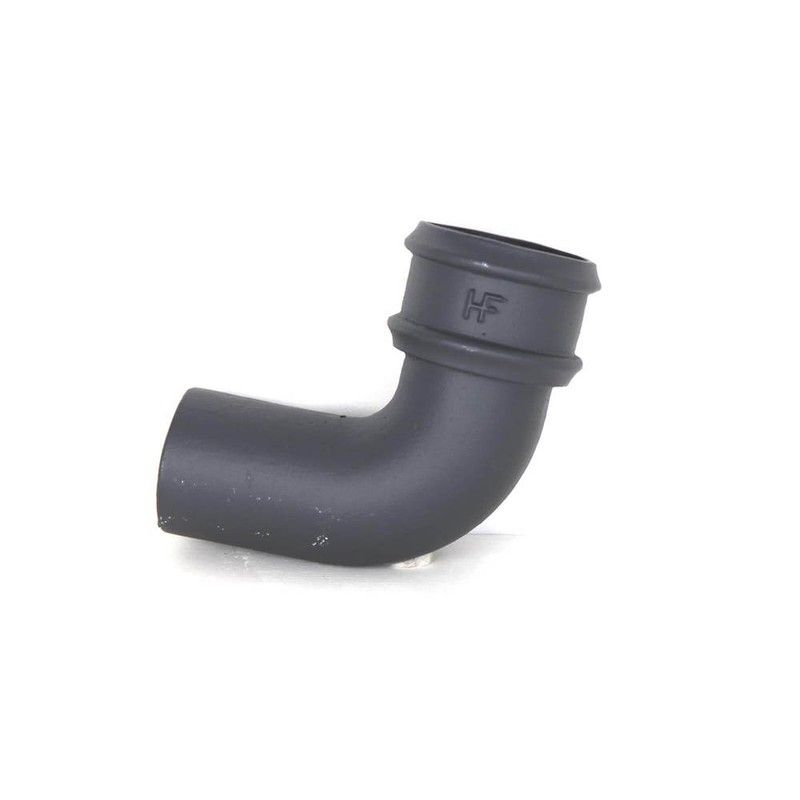

Cast Iron Round Downpipe Bend - 92.5 Degree x 65mm Primed

In stock
Code
R2520
More Information
Code R2520
EAN Code 0691208236171
Angle 92.5 Degree
Brand Hargreaves Premier
Colour Grey Primer
Dimension 190mm (L) x 180mm (W) x 95mm (D)
Length 1829mm
Material Cast Iron
Life Expected 100 Years +
Specification BS460
Weight (kg) 1.700000
Size 65mm
Profile Round
£19.93 £16.61
You need to spend another £250.00 to qualify for 2.5% discount.
All Cast Iron orders under £750 incur a one-off manufacturers' delivery charge of £35 + VAT. Orders over £750 are delivered free of charge to mainland UK.

92.5 Bends are used in a downpipe system to change the plane of the bend from vertical to horizontal or vice versa.

They are often used instead of offset bends when the soffit is particularly wide - this enables the pipe to run neatly below the soffit rather than dropping down diagonally back to the wall as it would with a normal swan neck setup.

The angle of the bend is 92.5 degrees rather than 90 degrees to encourage a slight fall, enabling rainwater to run away rather than sit in the pipe.
