Drainage Bottle Gully Circular Grid - 110mm
In stock
Code
BG510
Click or tap the image to open in fullscreen
5 stars
From 33 reviews
| Code | BG510 |
|---|
Product Overview

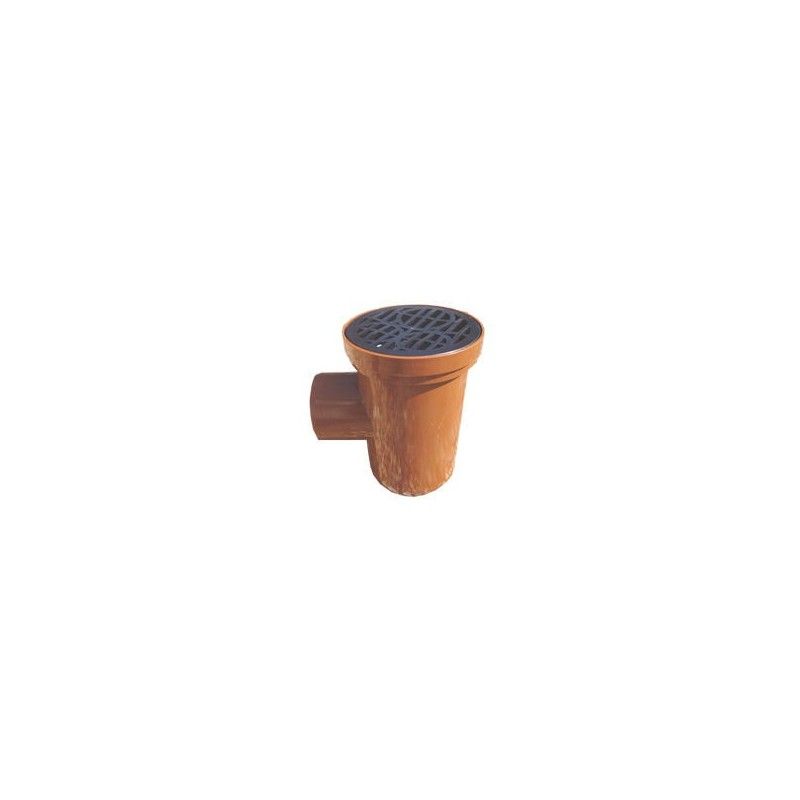

This 110mm bottle gully with a circular grid is a compact 110mm gully trap for introducing surface water and waste into underground drainage while blocking foul odours. The design is roddable from the top for straightforward maintenance.
Key Features
- Roddable gully with top access through the grid for easy cleaning
- Trapped outlet prevents odours returning from the drain
- Connects to standard 110mm underground drainage systems
- Supplied with a circular grid serving as a robust bottle gully cover
- Manufactured to BS EN 1401-1
Installation Guidance
- Position the gully pot so the top finishes at paving level and the trap sits at least 150mm below the damp proof course as required.
- Bed the unit on suitable concrete and ensure a clear rodding path to the main run.
- Connect to the drain with 110mm fittings using our UC100 Double Socket Coupling. For pipe runs and additional fittings, see our 110mm drainage pipe range.
- For ongoing maintenance, lift the grid to remove and empty the body of the gully, then flush through via the rodding point.
Alternative Options
- Need chamber access elsewhere on the line? Add inspection chambers.
- Managing soakaways on the same project? See soakaway crates.
Product Video
Watch the quick overview below to see the gully layout, trap and maintenance access.
