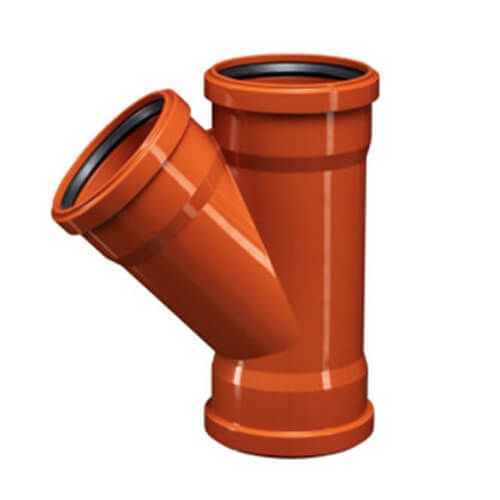

Drainage Junction Triple Socket - 45 Degree x 110mm - Pack of 12
Click or tap the image to open in fullscreen
| Code | UY110TPK12 |
|---|---|
| EAN Code | 5056919005464 |
| Weight (kg) | 8.244000 |
| Angle | 45 Degree |
| Brand | PBSL Group |
| Colour | Terracotta |
| Diameter | 110mm |
| Material | PVC-u |
| Pack Size | Pack of 12 |
| Style | Triple Socket |
| Guarantee | 2 Year Manufacturer Guarantee |
| Specification | BS EN 1401-1 |
| System Size | 110mm |
This pack of 12 triple socket 45 degree junctions is a cost effective bulk buy for 110mm underground drainage installations. The triple socket junction, or double branch, allows two additional pipe runs to be brought into the main drain at 45 degrees, one from each side, giving a smoother flow path than a right angled connection.
All sockets accept a length of 110mm drainage pipe. Any pipe that has been cut to length should be chamfered and lubricated with our SG100 lubricant before insertion to ensure the best possible seal. The sockets will also accept fittings with a pre-chamfered spigot end, such as single socket bends or gullies.
Ordering 110mm drainage junctions in bulk reduces the price per fitting and keeps spare fittings available on site.
Please watch our overview video below
