Impermeable Liner for Attenuation - Landflex AS Shoebox - Standard Double 5 Cubic Metre

In stock
Code
SHOEBOX5M3DOUBLE

Click or tap the image to open in fullscreen

Impermeable Liner for Attenuation - Landflex AS Shoebox - Standard Double 5 Cubic Metre
More Information
Code SHOEBOX5M3DOUBLE
EAN Code 0691208251754
Brand TCS Geotechnics
Material Plasticised PVC with a Layer of Polyester Fabric
Pack Size 5 Cubic Metre
Style Shoebox
Dimension 2800mm (W) x 2145mm (L) x 860mm (D)
£1,089.19 £907.66 £1,361.48 £1,134.57 Save 20%
Spend another £1500 to pay over time with Klarna

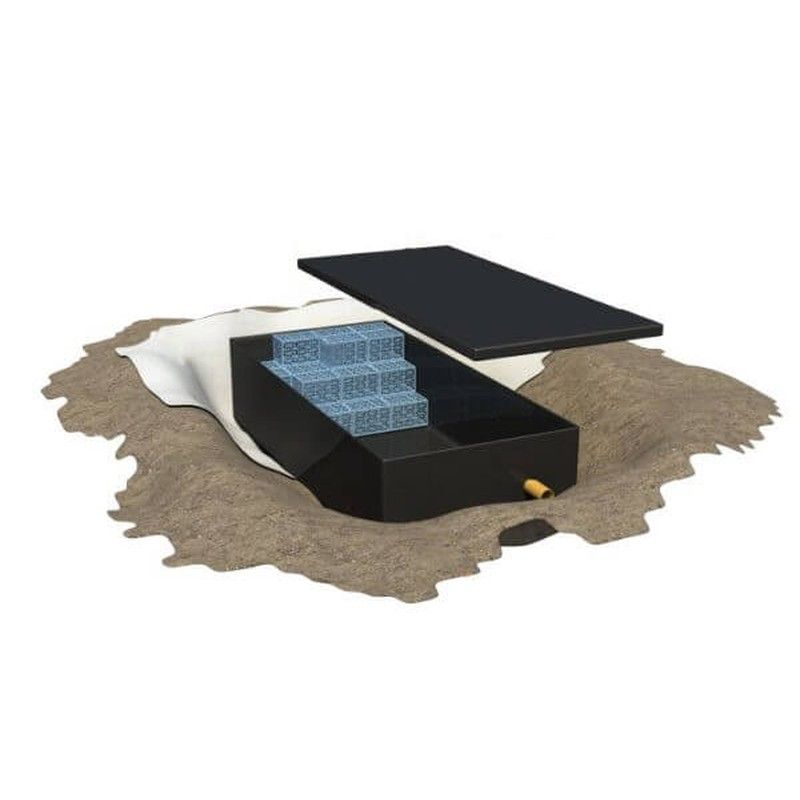

Impermeable membrane in a shoebox design for use with our standard (860mm deep) 5 cubic metre attenuation tanks.

This liner is used to wrap around the geocellular attenuation units and is usually supplied in two fabricated pieces. The first is the base while the second is for the top with a small overlap down the sides. The two pieces effectively make a shoebox.

Impermeable membrane will hold water within the structure which can then be released into the mains network or recycled for re-use.

The pieces will come folded in a concertina fashion on pallets with clear instructions as to where to place, unroll and pull out.

The shoebox impermeable liner comes with a non-woven protector geotextile which should wrap around the whole system before backfilling.

Top hat, double-sided tape and jubilee clips are also included for complete installation.

For installation advice and guidance please take a look at our attenuation system installation guide.

The Landflex AS shoebox attenuation liner is designed to fit on our pre-sized commercial soakaways in 5, 10, 20 and 50 cubic metres. Please note that we can cater for whatever size system you need so please get in touch to receive a personalised quote for your exact system measurements.

For larger applications several panels can be pre-fabricated and welded together off site, custom ready for final jointing on site, greatly reducing installation times.

Please Note - as this product is made to order it will take 7-10 days for delivery.
