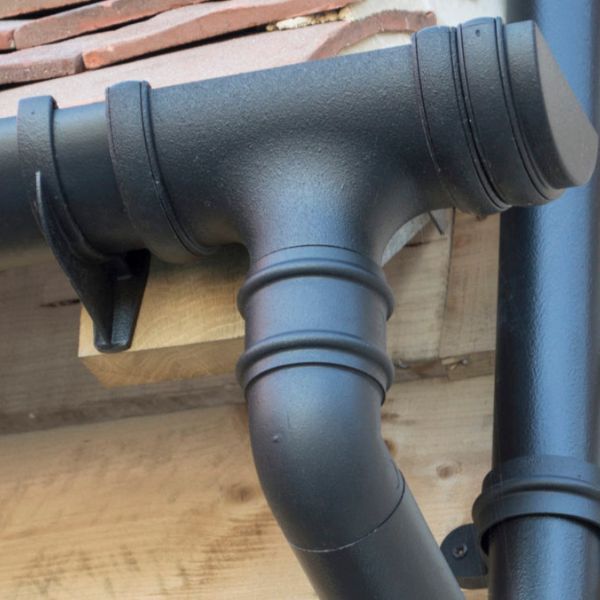

Ogee Gutter Stopend Outlet Right Hand - 110mm x 80mm Cast Iron Effect
Click or tap the image to open in fullscreen
|Colour||Cast Iron Effect|
|Dimension||178mm (W) x 135mm (H) x 185mm (L)|
|Specification||BS EN 12200 / BS EN 607|
|Size||110mm x 80mm|
Stopend Outlets form the connection between the gutter and the downpipe when the downpipe is positioned at the very end of the gutter run. Because ogee gutter is handed these fittings are available in left hand or right hand options.
The connection to the 65mm square downpipe is a simple push fit joint. You can also connect to 68mm round downpipe using the RDS2 adaptor.
Note that this fitting should only be used if the roof tiles or slates do not extend past the fascia board - if this is the case (such as at a gable end) you should use a running outlet with a small piece of gutter and an external stopend attached. This ensures that the rainwater from the end overhanging tiles is still channelled into the gutter.
You can view our PBSL Group short product video for stopend outlets below;
